1. Crystal Structure and Polytypism of Silicon Carbide
1.1 Cubic and Hexagonal Polytypes: From 3C to 6H and Past

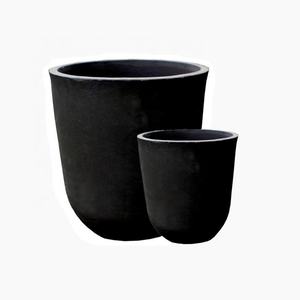

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalently bound ceramic composed of silicon and carbon atoms arranged in a tetrahedral coordination, developing one of the most complex systems of polytypism in products science.
Unlike most porcelains with a single stable crystal structure, SiC exists in over 250 recognized polytypes– distinct piling sequences of close-packed Si-C bilayers along the c-axis– ranging from cubic 3C-SiC (also referred to as β-SiC) to hexagonal 6H-SiC and rhombohedral 15R-SiC.
One of the most common polytypes used in engineering applications are 3C (cubic), 4H, and 6H (both hexagonal), each displaying slightly different digital band frameworks and thermal conductivities.
3C-SiC, with its zinc blende framework, has the narrowest bandgap (~ 2.3 eV) and is normally grown on silicon substrates for semiconductor devices, while 4H-SiC uses remarkable electron movement and is chosen for high-power electronic devices.
The strong covalent bonding and directional nature of the Si– C bond give phenomenal hardness, thermal stability, and resistance to sneak and chemical assault, making SiC perfect for extreme environment applications.
1.2 Defects, Doping, and Electronic Characteristic
Regardless of its architectural intricacy, SiC can be doped to accomplish both n-type and p-type conductivity, allowing its usage in semiconductor devices.
Nitrogen and phosphorus serve as contributor impurities, introducing electrons right into the conduction band, while aluminum and boron serve as acceptors, developing holes in the valence band.
However, p-type doping efficiency is restricted by high activation powers, especially in 4H-SiC, which poses difficulties for bipolar gadget layout.
Native problems such as screw misplacements, micropipes, and piling mistakes can break down tool performance by serving as recombination facilities or leakage courses, requiring premium single-crystal development for electronic applications.
The wide bandgap (2.3– 3.3 eV depending upon polytype), high malfunction electric area (~ 3 MV/cm), and exceptional thermal conductivity (~ 3– 4 W/m · K for 4H-SiC) make SiC far above silicon in high-temperature, high-voltage, and high-frequency power electronics.
2. Handling and Microstructural Design
( Silicon Carbide Ceramics)
2.1 Sintering and Densification Methods
Silicon carbide is inherently hard to densify because of its solid covalent bonding and reduced self-diffusion coefficients, requiring sophisticated processing techniques to accomplish full thickness without ingredients or with minimal sintering help.
Pressureless sintering of submicron SiC powders is possible with the addition of boron and carbon, which promote densification by removing oxide layers and enhancing solid-state diffusion.
Hot pushing applies uniaxial pressure during heating, enabling complete densification at lower temperatures (~ 1800– 2000 ° C )and producing fine-grained, high-strength parts ideal for reducing tools and use components.
For large or complicated forms, reaction bonding is utilized, where porous carbon preforms are penetrated with molten silicon at ~ 1600 ° C, forming β-SiC in situ with minimal shrinkage.
However, residual complimentary silicon (~ 5– 10%) remains in the microstructure, restricting high-temperature performance and oxidation resistance over 1300 ° C.
2.2 Additive Manufacturing and Near-Net-Shape Construction
Recent breakthroughs in additive manufacturing (AM), especially binder jetting and stereolithography making use of SiC powders or preceramic polymers, enable the construction of complicated geometries previously unattainable with standard methods.
In polymer-derived ceramic (PDC) routes, liquid SiC forerunners are shaped by means of 3D printing and afterwards pyrolyzed at high temperatures to generate amorphous or nanocrystalline SiC, usually calling for more densification.
These strategies reduce machining costs and material waste, making SiC more easily accessible for aerospace, nuclear, and warmth exchanger applications where detailed layouts boost efficiency.
Post-processing actions such as chemical vapor seepage (CVI) or liquid silicon infiltration (LSI) are often utilized to enhance density and mechanical integrity.
3. Mechanical, Thermal, and Environmental Performance
3.1 Toughness, Solidity, and Put On Resistance
Silicon carbide ranks amongst the hardest known materials, with a Mohs hardness of ~ 9.5 and Vickers firmness going beyond 25 Grade point average, making it very resistant to abrasion, erosion, and scratching.
Its flexural toughness normally ranges from 300 to 600 MPa, depending on processing method and grain dimension, and it preserves stamina at temperature levels approximately 1400 ° C in inert atmospheres.
Fracture durability, while modest (~ 3– 4 MPa · m 1ST/ TWO), is sufficient for lots of architectural applications, particularly when integrated with fiber support in ceramic matrix composites (CMCs).
SiC-based CMCs are made use of in turbine blades, combustor linings, and brake systems, where they supply weight financial savings, fuel efficiency, and extended service life over metallic counterparts.
Its exceptional wear resistance makes SiC ideal for seals, bearings, pump components, and ballistic shield, where durability under harsh mechanical loading is critical.
3.2 Thermal Conductivity and Oxidation Stability
One of SiC’s most beneficial properties is its high thermal conductivity– up to 490 W/m · K for single-crystal 4H-SiC and ~ 30– 120 W/m · K for polycrystalline forms– exceeding that of numerous steels and making it possible for efficient heat dissipation.
This building is vital in power electronic devices, where SiC devices generate much less waste heat and can run at higher power thickness than silicon-based gadgets.
At elevated temperature levels in oxidizing settings, SiC forms a protective silica (SiO ₂) layer that slows down more oxidation, giving good ecological durability approximately ~ 1600 ° C.
However, in water vapor-rich settings, this layer can volatilize as Si(OH)FOUR, leading to accelerated destruction– a crucial difficulty in gas generator applications.
4. Advanced Applications in Energy, Electronics, and Aerospace
4.1 Power Electronic Devices and Semiconductor Instruments
Silicon carbide has revolutionized power electronic devices by making it possible for devices such as Schottky diodes, MOSFETs, and JFETs that run at higher voltages, regularities, and temperature levels than silicon equivalents.
These devices minimize power losses in electrical lorries, renewable resource inverters, and commercial motor drives, contributing to international power effectiveness improvements.
The ability to run at junction temperature levels above 200 ° C allows for streamlined cooling systems and raised system integrity.
Additionally, SiC wafers are utilized as substrates for gallium nitride (GaN) epitaxy in high-electron-mobility transistors (HEMTs), combining the benefits of both wide-bandgap semiconductors.
4.2 Nuclear, Aerospace, and Optical Solutions
In atomic power plants, SiC is a crucial part of accident-tolerant gas cladding, where its low neutron absorption cross-section, radiation resistance, and high-temperature stamina boost security and efficiency.
In aerospace, SiC fiber-reinforced composites are used in jet engines and hypersonic automobiles for their lightweight and thermal security.
In addition, ultra-smooth SiC mirrors are used precede telescopes because of their high stiffness-to-density proportion, thermal security, and polishability to sub-nanometer roughness.
In recap, silicon carbide porcelains stand for a keystone of modern-day advanced products, integrating remarkable mechanical, thermal, and digital homes.
Through exact control of polytype, microstructure, and processing, SiC continues to allow technological advancements in power, transport, and extreme atmosphere design.
