1. Intro to Oil Submersed Transformers
In the elaborate internet of our contemporary electric grid, transformers play a crucial function, silently tipping voltage up and down to make sure electrical power can be transferred efficiently over fars away and dispersed safely to our homes and markets. Among the various types readily available, the oil submersed transformer stands as a testimony to tested integrity and durability. For years, these workhorses have developed the foundation of power systems worldwide.
An oil immersed transformer is a type of electric transformer that makes use of a specialized insulating oil as both a coolant and an insulating tool. This layout is mostly used for tool to high-power applications, making it a cornerstone of electric infrastructure. This overview dives deep into the globe of oil submersed power transformers and oil submersed circulation transformers, discovering their technology, applications, and their advancing role in an age of digitalization and renewable energy.
1.1 What is an Oil Submersed Transformer?
At its core, an oil immersed transformer includes a magnetic core and copper or aluminum windings housed inside a sealed storage tank full of insulating oil. The key feature of the oil is twofold:
1. Insulation: The oil possesses high dielectric stamina, successfully protecting the high-voltage windings from the transformer’s core and based storage tank. This protects against brief circuits and electric break downs.
2. Air conditioning: As the transformer operates, the windings generate considerable warm due to I ² R losses. The distributing oil absorbs this heat, convects it to the transformer’s storage tank wall surfaces, and dissipates it right into the bordering air. Bigger devices often include radiators or fins to boost the surface for extra efficient air conditioning.
This dual-purpose use of oil makes the oil submersed transformer incredibly effective and durable, efficient in dealing with high loads and enduring short-term overloads better than many dry-type alternatives.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Circulation Transformer
While all these units are oil submersed transformers, they serve unique features within the power system network. Comprehending the distinction is essential.
An oil immersed power transformer is a heavyweight, typically utilized in transmission networks at generating stations and major substations. Their main duty is to “step-up” the voltage generated at the power plant to very high levels (e.g., 138 kV, 230 kV, 500 kV and over) for reliable long-distance transmission, and to “step-down” the voltage at obtaining substations for further circulation. They are identified by their extremely high power scores (commonly surpassing 100 MVA), intricate construction, and on-load tap changers for voltage regulation.
An oil involved distribution transformer, on the other hand, performs the final step in the power delivery chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and steps it to the reduced voltages (e.g., 400/230 V) made use of by commercial and domestic consumers. You generally find them on energy posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller, have lower power ratings (typically as much as 2,500 kVA), and are developed for optimal effectiveness at lower, a lot more continuous loads.

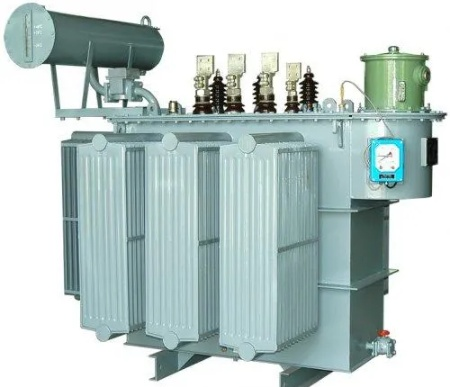

(Oil immersed power transformer)
2. Key Advantages of Oil Immersed Transformers
The enduring popularity of the oil immersed transformer is not unintentional. It uses a suite of compelling benefits that make it the recommended choice for lots of requiring applications.
2.1 Superior Cooling and Overload Capacity
The premium thermal capacity of oil contrasted to air permits an oil submersed power transformer to take care of and dissipate heat far more effectively. This equates to a higher overload ability. Throughout periods of top electrical energy need, an oil submersed transformer can manage short-lived overloads without receiving damage, an essential feature for preserving grid stability. The oil’s circulation guarantees even heat circulation, avoiding localized hot spots that can deteriorate insulation gradually.
2.2 Improved Insulation and Long Life Span
The combination of high-quality mineral oil and thoroughly impregnated paper insulation creates a dielectric system of remarkable toughness. This robust insulation system protects the transformer from voltage surges and transients, contributing to an operational life expectancy that can include 30-40 years or even more with correct maintenance. The secured tank also safeguards the inner elements from wetness, dust, and other atmospheric pollutants.
2.3 High Effectiveness and Cost-Effectiveness
For high-power applications, the oil submersed transformer is commonly the most cost-effective selection. The materials utilized– mineral oil, steel tank, and copper/aluminum windings– offer a favorable balance of efficiency and expense. The high effectiveness of these transformers, especially at their ranked lots, leads to lower power losses over their lifetime, leading to significant cost savings for energy companies and huge commercial individuals.
3. Warm Topics and Future Trends
The world of oil immersed transformers is not static. It is constantly progressing to meet new obstacles and incorporate with contemporary technologies.
3.1 Eco-friendly and Fireproof Oils
Environmental and safety and security issues are driving a significant change away from traditional mineral oil. The market is rapidly adopting oil immersed transformers filled with naturally degradable esters (synthetic or natural). These oils supply a higher fire point (making them K-class fire-resistant), are much less hazardous, and are readily naturally degradable, substantially decreasing the environmental impact in situation of a leak. This trend is making oil immersed circulation transformers much safer for installation in city locations and eco delicate locations.
3.2 Assimilation with Smart Grids and IoT
The contemporary oil engaged power transformer is coming to be an intelligent node in the clever grid. Sensors are being integrated to check key criteria in real-time, consisting of:
Dissolved Gas Analysis (DGA): Spotting fault gases generated within the oil to forecast incipient mistakes.
Temperature Level Tracking: Tracking top-oil and hotspot temperature levels.
Tons and Power Quality Monitoring.
This data, sent by means of IoT (Net of Things) systems, enables anticipating upkeep, stops unintended outages, and optimizes transformer application and life-span.
3.3 Supporting the Renewable Resource Shift
The worldwide promote renewables is developing new need for oil submersed transformers. Large solar ranches and wind power setups need durable oil submersed power transformers to step up the created voltage to transmission levels. Additionally, the recurring nature of renewables locations greater anxiety on grid elements, and the proven reliability and overload capability of oil submersed transformers make them perfect for this vital function.
4. Option and Upkeep Finest Practices
Picking the right transformer and maintaining it appropriately is crucial to a reputable power system.
4.1 Just how to Select the Right Oil Immersed Transformer
Choosing in between an oil immersed power transformer and an oil submersed circulation transformer depends upon the application. Trick considerations include:
1. Voltage Degree and kVA Rating: Match the transformer’s specifications to your system’s needs.
2. Application: Transmission substation, plant, or commercial distribution.
3. Location: Indoor vs. outdoor, ecological conditions, and fire security guidelines (which might affect the option of insulating oil).
4. Effectiveness Requirements: Comply with regional efficiency criteria like DOE (U.S.A.) or EU CoC (Europe).
5. Budget plan: Take into consideration both the preliminary capital cost and the overall cost of possession, consisting of losses.
(Oil immersed distribution transformer)
4.2 Vital Maintenance for Longevity
Positive upkeep is important for any kind of oil submersed transformer. A detailed program should include:
1. Regular Oil Sampling and Testing: Regular DGA and screening of dielectric stamina and dampness web content are the most reliable means to examine the health of the transformer.
2. Bushing and Insulation Examination: Visual checks for splits, contamination, or leakages.
3. Faucet Changer Maintenance: Routine inspection and servicing of on-load or off-load faucet changers.
4. Maintain it Clean and Dry: Making certain the tank exterior, radiators, and rests are tidy and practical.
The oil immersed transformer, in its roles as both a high-capacity oil immersed power transformer and an ubiquitous oil submersed circulation transformer, remains an irreplaceable part of our global energy facilities. Its tested style, combined with continuous developments in insulating fluids and digital tracking, guarantees it will remain to be a dependable, efficient, and intelligent solution for powering our globe for years to find. As we develop the grids of the future, integrating more renewables and electronic intelligence, the robust and versatile oil submersed transformer will unquestionably be at the heart of it.
