1. Product Qualities and Architectural Design
1.1 Structure and Crystalline Phases of Alumina

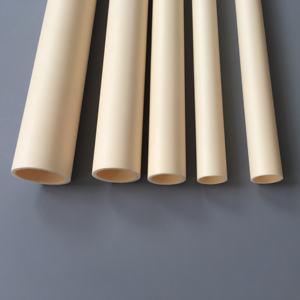

( Alumina Ceramic Tubes)
Alumina (Al ₂ O SIX) ceramic tubes are primarily produced from high-purity light weight aluminum oxide, with purity degrees commonly ranging from 90% to 99.8%, depending on the intended application.
The dominant crystalline phase in totally dense, high-temperature sintered tubes is α-alumina (diamond), which displays a trigonal crystal structure and extraordinary thermodynamic security.
This stage shift from forerunner hydroxides (e.g., boehmite or gibbsite) to α-alumina happens over 1100 ° C and causes a dense, interlacing microstructure that provides impressive mechanical strength and chemical resistance.
Higher purity grades (≥ 99.5%) make the most of firmness, use resistance, and dielectric performance, while lower-purity formulas might include secondary stages like mullite or glazed grain limit stages to lower cost or dressmaker thermal growth.
The ability to manage grain size, porosity, and phase structure throughout processing permits engineers to fine-tune alumina tubes for specific useful demands across varied industrial domain names.
1.2 Mechanical, Thermal, and Electric Feature
Alumina ceramic tubes display an one-of-a-kind mix of physical properties that make them indispensable popular design atmospheres.
With a Vickers hardness exceeding 1500 HV, they are highly immune to abrasion and erosion, exceeding most metals and polymers in wear-prone systems.
Their compressive strength can reach 2000 MPa, enabling architectural use under high mechanical lots, while flexural strength normally varies from 300 to 500 MPa, depending upon density and surface finish.
Thermally, alumina preserves stability as much as 1700 ° C in oxidizing atmospheres, with a low coefficient of thermal expansion (~ 8 ppm/K), contributing to excellent thermal shock resistance when appropriately created.
Although its thermal conductivity (~ 30 W/(m · K)) is modest contrasted to steels or aluminum nitride, it suffices for lots of high-temperature applications where electrical insulation and architectural stability are prioritized.
Electrically, alumina is an outstanding insulator with quantity resistivity > 10 ¹⁴ Ω · centimeters and high dielectric stamina (> 15 kV/mm), making it optimal for electric feedthroughs, sensor housings, and high-voltage insulation.
( Alumina Ceramic Tubes)
2. Production Processes and Dimensional Control
2.1 Shaping and Creating Techniques
The manufacturing of alumina ceramic tubes entails innovative creating techniques tailored to accomplish precise dimensions, wall density uniformity, and surface area high quality.
Typical strategies include extrusion, isostatic pushing, and slide casting, each matched to different dimension arrays and efficiency needs.
Extrusion is extensively utilized for long, straight tubes with consistent cross-sections, where a plasticized alumina paste is compelled with a die and cut to length before drying out and sintering.
For high-precision or thin-walled tubes, cold isostatic pushing (CIP) applies uniform stress from all instructions to compact environment-friendly bodies, minimizing distortion and boosting thickness homogeneity.
Slip spreading, entailing the deposition of a colloidal alumina suspension (slip) onto a porous plaster mold and mildew, is excellent for complex or large-diameter geometries with variable wall thickness.
After creating, tubes undergo cautious drying to stop breaking, adhered to by binder exhaustion and high-temperature sintering (1500– 1650 ° C )to attain complete densification and dimensional stability.
2.2 Ending Up and Quality Control
Post-sintering procedures such as centerless grinding, washing, and polishing are utilized to attain tight tolerances, smooth surface finishes, and precise internal and outer sizes.
Tolerances as limited as ± 0.01 mm are possible for critical applications in semiconductor processing or logical instrumentation.
Surface roughness can be minimized to Ra < 0.1 µm, reducing bit trapping and improving compatibility with ultra-high vacuum cleaner (UHV) or cleanroom settings.
Non-destructive screening methods– consisting of ultrasonic examination, X-ray radiography, and color penetrant testing– make sure structural integrity and absence of cracks or gaps.
Dimensional metrology using coordinate determining equipments (CMM) or laser scanning validates compliance with style specs, particularly for custom-made or high-volume manufacturing runs.
3. Practical Efficiency in Harsh Environments
3.1 Resistance to Thermal and Chemical Deterioration
One of one of the most compelling benefits of alumina ceramic tubes is their ability to endure extreme thermal and chemical problems where metals and polymers fail.
They stay dimensionally secure and mechanically robust in continual solution at temperature levels over 1500 ° C, making them ideal for heater liners, thermocouple defense sheaths, and glowing heating unit tubes.
Their inertness to thaw steels (e.g., aluminum, zinc, and non-ferrous alloys), liquified salts, and several acids (except hydrofluoric and hot phosphoric acid) makes it possible for usage in metallurgical and chemical processing tools.
In oxidizing and reducing ambiences, alumina does not deteriorate or catalyze undesirable reactions, maintaining process pureness in semiconductor and glass manufacturing.
This chemical inertness additionally avoids contamination in high-purity fluid dealing with systems, including those used in pharmaceutical and food processing sectors.
3.2 Electrical Insulation and Plasma Resistance
In electrical and plasma environments, alumina tubes work as protecting barriers that preserve circuit honesty under high voltage and elevated temperature.
They are made use of in high-intensity discharge (HID) lamps, where they have ionized gases at temperatures surpassing 1000 ° C while holding up against electrical potentials of a number of kilovolts.
In plasma etching and deposition systems, alumina tubes work as dielectric home windows or gas distribution elements, standing up to ion bombardment and thermal biking without fracturing or outgassing.
Their reduced dielectric loss and high arc resistance avoid electrical tracking and break down, guaranteeing long service life in switchgear and power transmission components.
These buildings are crucial in keeping procedure security and equipment dependability in sophisticated manufacturing and energy systems.
4. Industrial and Arising Applications
4.1 High-Temperature and Commercial Handling Equipments
Alumina ceramic tubes are integral to a variety of industrial processes that require resilience under extreme problems.
In thermal processing, they work as protective sheaths for thermocouples and burner in kilns, heating systems, and warmth therapy equipment, protecting sensitive elements from corrosive ambiences and mechanical wear.
In liquid handling, they transport hostile chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock allows quick home heating and cooling down cycles without failing, a vital advantage in cyclic commercial operations.
In glass production, alumina tubes assist liquified glass flows and support developing equipment, resisting erosion from viscous, high-temperature thaws.
4.2 Advanced Technologies and Future Integration
Past standard industrial uses, alumina tubes are locating new roles in cutting-edge modern technologies.
In semiconductor construction, ultra-pure alumina tubes are made use of in chemical vapor deposition (CVD) reactors and ion implantation systems, where particle generation and metal contamination have to be decreased.
In clinical devices, biocompatible alumina tubes function as insulating components in surgical tools, oral implants, and diagnostic sensing units.
Research study is discovering functionalized alumina tubes with embedded sensing units or conductive traces for smart architectural tracking in aerospace and energy systems.
Additive manufacturing (3D printing) of alumina is becoming an approach to produce complicated tube geometries with inner networks or rated compositions, making it possible for next-generation warmth exchangers and microreactors.
As markets press towards greater performance, cleaner processes, and higher dependability, alumina ceramic tubes remain to develop as making it possible for elements in the framework of contemporary technology.
In recap, alumina ceramic tubes represent a mature yet dynamically advancing class of crafted materials, integrating remarkable thermal, mechanical, and electric performance in a single inorganic channel.
Their flexibility throughout severe settings ensures their continued importance in both established industrial systems and arising sophisticated applications.
