1. Fundamental Concepts and Refine Categories
1.1 Definition and Core Mechanism

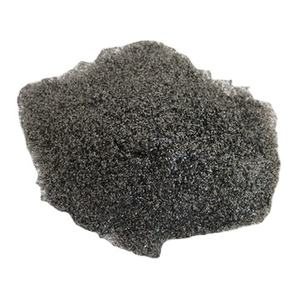

(3d printing alloy powder)
Metal 3D printing, also called metal additive production (AM), is a layer-by-layer fabrication strategy that develops three-dimensional metal parts straight from electronic versions making use of powdered or cord feedstock.
Unlike subtractive techniques such as milling or turning, which eliminate product to accomplish form, metal AM includes material just where required, enabling unprecedented geometric complexity with marginal waste.
The procedure starts with a 3D CAD design cut right into slim straight layers (commonly 20– 100 µm thick). A high-energy resource– laser or electron beam of light– uniquely melts or fuses metal particles according to each layer’s cross-section, which solidifies upon cooling to form a dense solid.
This cycle repeats until the full component is created, typically within an inert environment (argon or nitrogen) to avoid oxidation of reactive alloys like titanium or aluminum.
The resulting microstructure, mechanical buildings, and surface finish are governed by thermal background, check approach, and product qualities, needing specific control of procedure parameters.
1.2 Major Steel AM Technologies
The two dominant powder-bed blend (PBF) innovations are Careful Laser Melting (SLM) and Electron Beam Melting (EBM).
SLM uses a high-power fiber laser (generally 200– 1000 W) to fully melt metal powder in an argon-filled chamber, creating near-full thickness (> 99.5%) get rid of great attribute resolution and smooth surfaces.
EBM utilizes a high-voltage electron light beam in a vacuum setting, running at greater build temperatures (600– 1000 ° C), which lowers recurring stress and anxiety and enables crack-resistant processing of fragile alloys like Ti-6Al-4V or Inconel 718.
Past PBF, Directed Energy Deposition (DED)– consisting of Laser Metal Deposition (LMD) and Cord Arc Ingredient Production (WAAM)– feeds steel powder or cable into a molten swimming pool developed by a laser, plasma, or electric arc, ideal for massive fixings or near-net-shape elements.
Binder Jetting, however much less fully grown for steels, includes depositing a fluid binding representative onto steel powder layers, adhered to by sintering in a heating system; it uses high speed but lower density and dimensional precision.
Each innovation stabilizes compromises in resolution, develop price, material compatibility, and post-processing demands, leading choice based on application demands.
2. Materials and Metallurgical Considerations
2.1 Typical Alloys and Their Applications
Metal 3D printing sustains a wide variety of design alloys, consisting of stainless-steels (e.g., 316L, 17-4PH), tool steels (H13, Maraging steel), nickel-based superalloys (Inconel 625, 718), titanium alloys (Ti-6Al-4V, CP-Ti), aluminum (AlSi10Mg, Sc-modified Al), and cobalt-chrome (CoCrMo).
Stainless-steels provide deterioration resistance and moderate toughness for fluidic manifolds and medical instruments.

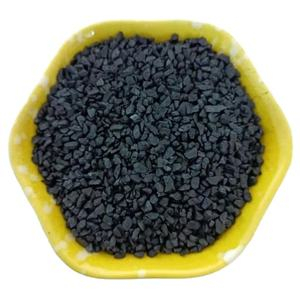

(3d printing alloy powder)
Nickel superalloys master high-temperature settings such as wind turbine blades and rocket nozzles because of their creep resistance and oxidation security.
Titanium alloys incorporate high strength-to-density ratios with biocompatibility, making them perfect for aerospace braces and orthopedic implants.
Aluminum alloys allow light-weight structural components in auto and drone applications, though their high reflectivity and thermal conductivity pose challenges for laser absorption and thaw pool security.
Material development continues with high-entropy alloys (HEAs) and functionally rated structures that change homes within a single component.
2.2 Microstructure and Post-Processing Requirements
The quick home heating and cooling cycles in metal AM produce unique microstructures– often fine cellular dendrites or columnar grains aligned with warmth flow– that differ substantially from actors or wrought equivalents.
While this can improve strength with grain refinement, it may likewise present anisotropy, porosity, or residual tensions that compromise exhaustion performance.
Consequently, nearly all steel AM parts require post-processing: anxiety alleviation annealing to decrease distortion, warm isostatic pushing (HIP) to shut inner pores, machining for critical resistances, and surface area completing (e.g., electropolishing, shot peening) to boost exhaustion life.
Warmth treatments are customized to alloy systems– as an example, solution aging for 17-4PH to accomplish precipitation hardening, or beta annealing for Ti-6Al-4V to enhance ductility.
Quality control depends on non-destructive screening (NDT) such as X-ray calculated tomography (CT) and ultrasonic inspection to identify inner defects invisible to the eye.
3. Style Freedom and Industrial Impact
3.1 Geometric Advancement and Useful Integration
Metal 3D printing unlocks layout standards impossible with traditional manufacturing, such as internal conformal cooling channels in injection mold and mildews, latticework frameworks for weight reduction, and topology-optimized load courses that lessen product usage.
Components that as soon as needed setting up from dozens of elements can currently be printed as monolithic systems, decreasing joints, bolts, and possible failure factors.
This useful combination enhances integrity in aerospace and clinical devices while cutting supply chain complexity and inventory expenses.
Generative design formulas, paired with simulation-driven optimization, automatically create organic forms that satisfy efficiency targets under real-world loads, pressing the limits of effectiveness.
Modification at range comes to be viable– oral crowns, patient-specific implants, and bespoke aerospace fittings can be produced economically without retooling.
3.2 Sector-Specific Fostering and Financial Worth
Aerospace leads fostering, with business like GE Air travel printing fuel nozzles for LEAP engines– consolidating 20 parts into one, reducing weight by 25%, and boosting toughness fivefold.
Clinical gadget producers utilize AM for porous hip stems that motivate bone ingrowth and cranial plates matching client anatomy from CT scans.
Automotive companies use steel AM for quick prototyping, light-weight brackets, and high-performance racing components where performance outweighs price.
Tooling industries benefit from conformally cooled mold and mildews that reduced cycle times by up to 70%, enhancing efficiency in mass production.
While machine prices stay high (200k– 2M), declining rates, boosted throughput, and licensed material databases are broadening ease of access to mid-sized business and solution bureaus.
4. Obstacles and Future Instructions
4.1 Technical and Accreditation Obstacles
Despite progress, metal AM encounters hurdles in repeatability, credentials, and standardization.
Small variants in powder chemistry, dampness web content, or laser focus can modify mechanical buildings, demanding extensive process control and in-situ monitoring (e.g., thaw pool cameras, acoustic sensors).
Certification for safety-critical applications– specifically in aeronautics and nuclear industries– calls for extensive analytical recognition under structures like ASTM F42, ISO/ASTM 52900, and NADCAP, which is lengthy and costly.
Powder reuse protocols, contamination dangers, and lack of universal material specifications additionally make complex industrial scaling.
Efforts are underway to develop digital doubles that connect process criteria to component performance, allowing predictive quality control and traceability.
4.2 Arising Patterns and Next-Generation Solutions
Future developments consist of multi-laser systems (4– 12 lasers) that substantially enhance construct prices, hybrid machines incorporating AM with CNC machining in one platform, and in-situ alloying for custom-made compositions.
Artificial intelligence is being integrated for real-time defect detection and flexible parameter improvement throughout printing.
Lasting efforts concentrate on closed-loop powder recycling, energy-efficient beam of light sources, and life cycle assessments to evaluate environmental benefits over traditional approaches.
Research into ultrafast lasers, cold spray AM, and magnetic field-assisted printing might overcome present constraints in reflectivity, residual anxiety, and grain positioning control.
As these advancements develop, metal 3D printing will change from a specific niche prototyping device to a mainstream manufacturing method– reshaping how high-value steel components are designed, made, and deployed throughout markets.
