1. Material Scientific Research and Structural Characteristic
1.1 Crystal Framework and Chemical Stability

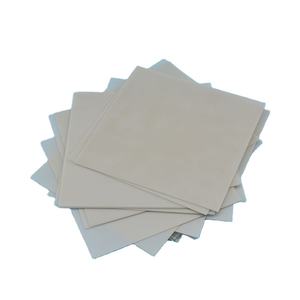

(Aluminum Nitride Ceramic Substrates)
Light weight aluminum nitride (AlN) is a vast bandgap semiconductor ceramic with a hexagonal wurtzite crystal framework, made up of rotating layers of aluminum and nitrogen atoms adhered via strong covalent interactions.
This robust atomic arrangement grants AlN with exceptional thermal stability, maintaining structural stability as much as 2200 ° C in inert ambiences and standing up to disintegration under severe thermal cycling.
Unlike alumina (Al two O ₃), AlN is chemically inert to thaw metals and many reactive gases, making it suitable for harsh settings such as semiconductor handling chambers and high-temperature furnaces.
Its high resistance to oxidation– forming just a thin protective Al ₂ O three layer at surface area upon exposure to air– guarantees long-lasting reliability without significant degradation of mass properties.
Moreover, AlN displays outstanding electric insulation with a resistivity going beyond 10 ¹⁴ Ω · centimeters and a dielectric strength over 30 kV/mm, vital for high-voltage applications.
1.2 Thermal Conductivity and Electronic Qualities
One of the most defining feature of light weight aluminum nitride is its outstanding thermal conductivity, commonly ranging from 140 to 180 W/(m · K )for commercial-grade substrates– over 5 times greater than that of alumina (≈ 30 W/(m · K)).
This performance originates from the low atomic mass of nitrogen and aluminum, combined with solid bonding and marginal factor problems, which allow reliable phonon transport through the latticework.
Nonetheless, oxygen pollutants are particularly damaging; even trace quantities (above 100 ppm) substitute for nitrogen websites, creating aluminum jobs and scattering phonons, therefore considerably minimizing thermal conductivity.
High-purity AlN powders manufactured through carbothermal decrease or direct nitridation are essential to achieve ideal warmth dissipation.
Despite being an electrical insulator, AlN’s piezoelectric and pyroelectric residential properties make it valuable in sensors and acoustic wave tools, while its vast bandgap (~ 6.2 eV) supports procedure in high-power and high-frequency digital systems.
2. Manufacture Processes and Manufacturing Obstacles
( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Methods
Producing high-performance AlN substrates starts with the synthesis of ultra-fine, high-purity powder, frequently attained with responses such as Al Two O THREE + 3C + N ₂ → 2AlN + 3CO (carbothermal decrease) or direct nitridation of aluminum steel: 2Al + N ₂ → 2AlN.
The resulting powder should be thoroughly grated and doped with sintering help like Y ₂ O THREE, CaO, or rare earth oxides to advertise densification at temperatures in between 1700 ° C and 1900 ° C under nitrogen ambience.
These additives create transient liquid stages that enhance grain limit diffusion, making it possible for full densification (> 99% theoretical density) while decreasing oxygen contamination.
Post-sintering annealing in carbon-rich settings can further reduce oxygen content by removing intergranular oxides, therefore bring back peak thermal conductivity.
Accomplishing uniform microstructure with controlled grain dimension is vital to balance mechanical strength, thermal performance, and manufacturability.
2.2 Substrate Shaping and Metallization
As soon as sintered, AlN ceramics are precision-ground and washed to satisfy limited dimensional tolerances required for digital product packaging, frequently to micrometer-level monotony.
Through-hole exploration, laser cutting, and surface patterning enable combination into multilayer plans and hybrid circuits.
An important action in substrate manufacture is metallization– the application of conductive layers (typically tungsten, molybdenum, or copper) by means of procedures such as thick-film printing, thin-film sputtering, or straight bonding of copper (DBC).
For DBC, copper aluminum foils are adhered to AlN surface areas at raised temperatures in a controlled environment, creating a strong interface ideal for high-current applications.
Different techniques like energetic metal brazing (AMB) utilize titanium-containing solders to enhance adhesion and thermal tiredness resistance, specifically under repeated power cycling.
Correct interfacial engineering ensures reduced thermal resistance and high mechanical dependability in running gadgets.
3. Efficiency Advantages in Electronic Systems
3.1 Thermal Monitoring in Power Electronics
AlN substratums excel in managing warmth created by high-power semiconductor gadgets such as IGBTs, MOSFETs, and RF amplifiers utilized in electrical cars, renewable energy inverters, and telecoms framework.
Efficient heat extraction avoids local hotspots, decreases thermal stress and anxiety, and extends tool lifetime by alleviating electromigration and delamination dangers.
Compared to conventional Al two O five substrates, AlN enables smaller bundle dimensions and higher power densities as a result of its exceptional thermal conductivity, enabling designers to push performance boundaries without compromising reliability.
In LED lights and laser diodes, where joint temperature directly affects efficiency and shade security, AlN substratums substantially improve luminous outcome and functional lifespan.
Its coefficient of thermal expansion (CTE ≈ 4.5 ppm/K) additionally closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), lessening thermo-mechanical stress during thermal biking.
3.2 Electric and Mechanical Dependability
Past thermal efficiency, AlN provides low dielectric loss (tan δ < 0.0005) and steady permittivity (εᵣ ≈ 8.9) across a wide frequency array, making it suitable for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature avoids wetness ingress, eliminating rust dangers in humid settings– a vital advantage over organic substratums.
Mechanically, AlN possesses high flexural toughness (300– 400 MPa) and hardness (HV ≈ 1200), ensuring toughness throughout handling, assembly, and field procedure.
These attributes collectively add to improved system dependability, lowered failing prices, and lower complete expense of possession in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Defense Systems
AlN ceramic substrates are now standard in sophisticated power modules for commercial electric motor drives, wind and solar inverters, and onboard battery chargers in electric and hybrid automobiles.
In aerospace and defense, they sustain radar systems, electronic war systems, and satellite interactions, where efficiency under extreme conditions is non-negotiable.
Medical imaging devices, including X-ray generators and MRI systems, also take advantage of AlN’s radiation resistance and signal honesty.
As electrification trends accelerate across transport and energy industries, need for AlN substrates continues to expand, driven by the need for portable, effective, and reliable power electronics.
4.2 Emerging Integration and Lasting Growth
Future improvements concentrate on incorporating AlN right into three-dimensional packaging architectures, ingrained passive parts, and heterogeneous assimilation systems combining Si, SiC, and GaN tools.
Research right into nanostructured AlN movies and single-crystal substrates intends to further increase thermal conductivity toward theoretical restrictions (> 300 W/(m · K)) for next-generation quantum and optoelectronic gadgets.
Initiatives to lower production costs via scalable powder synthesis, additive production of complicated ceramic structures, and recycling of scrap AlN are obtaining momentum to enhance sustainability.
Furthermore, modeling tools making use of finite aspect evaluation (FEA) and machine learning are being utilized to maximize substrate style for certain thermal and electrical loads.
In conclusion, aluminum nitride ceramic substratums represent a foundation technology in contemporary electronics, distinctly linking the void in between electric insulation and remarkable thermal conduction.
Their function in enabling high-efficiency, high-reliability power systems highlights their tactical significance in the ongoing development of digital and energy modern technologies.
