1. Basic Structure and Material Make-up
1.1 The Nanoscale Architecture of Aerogels

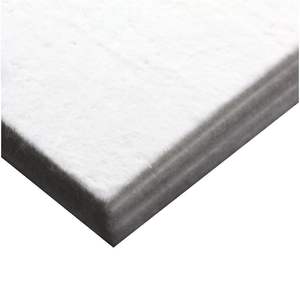

(Aerogel Blanket)
Aerogel blankets are sophisticated thermal insulation materials built upon an one-of-a-kind nanostructured framework, where a solid silica or polymer network spans an ultra-high porosity quantity– commonly surpassing 90% air.
This structure originates from the sol-gel procedure, in which a fluid precursor (commonly tetramethyl orthosilicate or TMOS) undertakes hydrolysis and polycondensation to form a damp gel, adhered to by supercritical or ambient stress drying to get rid of the fluid without falling down the delicate porous network.
The resulting aerogel contains interconnected nanoparticles (3– 5 nm in diameter) developing pores on the range of 10– 50 nm, little enough to subdue air molecule motion and hence reduce conductive and convective warm transfer.
This phenomenon, called Knudsen diffusion, dramatically minimizes the effective thermal conductivity of the product, typically to values in between 0.012 and 0.018 W/(m · K) at space temperature– among the most affordable of any solid insulator.
In spite of their reduced density (as reduced as 0.003 g/cm FIVE), pure aerogels are inherently brittle, demanding support for sensible usage in flexible covering kind.
1.2 Reinforcement and Compound Design
To conquer frailty, aerogel powders or pillars are mechanically incorporated into coarse substrates such as glass fiber, polyester, or aramid felts, producing a composite “blanket” that preserves phenomenal insulation while obtaining mechanical effectiveness.
The reinforcing matrix gives tensile toughness, versatility, and managing sturdiness, making it possible for the product to be reduced, bent, and mounted in complex geometries without significant efficiency loss.
Fiber content normally varies from 5% to 20% by weight, carefully balanced to reduce thermal linking– where fibers carry out warm throughout the blanket– while ensuring architectural honesty.
Some advanced styles include hydrophobic surface therapies (e.g., trimethylsilyl groups) to prevent moisture absorption, which can weaken insulation performance and promote microbial growth.
These alterations permit aerogel coverings to keep steady thermal residential properties also in humid environments, expanding their applicability past regulated laboratory problems.
2. Production Processes and Scalability
( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Manufacturing
The production of aerogel coverings starts with the development of a wet gel within a fibrous floor covering, either by fertilizing the substratum with a liquid forerunner or by co-forming the gel and fiber network simultaneously.
After gelation, the solvent should be gotten rid of under problems that stop capillary tension from falling down the nanopores; traditionally, this required supercritical carbon monoxide two drying out, an expensive and energy-intensive procedure.
Current breakthroughs have made it possible for ambient pressure drying through surface area adjustment and solvent exchange, significantly decreasing production prices and making it possible for continual roll-to-roll production.
In this scalable procedure, long rolls of fiber floor covering are constantly coated with precursor remedy, gelled, dried out, and surface-treated, permitting high-volume output suitable for industrial applications.
This change has been critical in transitioning aerogel blankets from particular niche laboratory products to readily viable items made use of in construction, energy, and transportation sectors.
2.2 Quality Control and Performance Uniformity
Ensuring consistent pore framework, consistent thickness, and trusted thermal performance across big manufacturing batches is crucial for real-world implementation.
Suppliers utilize strenuous quality assurance measures, including laser scanning for density variant, infrared thermography for thermal mapping, and gravimetric analysis for moisture resistance.
Batch-to-batch reproducibility is necessary, particularly in aerospace and oil & gas sectors, where failing due to insulation malfunction can have serious consequences.
In addition, standard screening according to ASTM C177 (heat flow meter) or ISO 9288 ensures exact reporting of thermal conductivity and enables fair comparison with conventional insulators like mineral woollen or foam.
3. Thermal and Multifunctional Characteristic
3.1 Superior Insulation Across Temperature Ranges
Aerogel blankets display exceptional thermal efficiency not just at ambient temperature levels but additionally across extreme ranges– from cryogenic problems below -100 ° C to high temperatures surpassing 600 ° C, depending upon the base material and fiber type.
At cryogenic temperatures, standard foams might crack or lose effectiveness, whereas aerogel coverings continue to be versatile and keep reduced thermal conductivity, making them perfect for LNG pipelines and storage tanks.
In high-temperature applications, such as commercial heaters or exhaust systems, they supply reliable insulation with lowered thickness compared to bulkier alternatives, saving room and weight.
Their reduced emissivity and capacity to show convected heat additionally enhance performance in glowing barrier configurations.
This broad functional envelope makes aerogel blankets distinctly functional among thermal management services.
3.2 Acoustic and Fire-Resistant Qualities
Past thermal insulation, aerogel blankets demonstrate notable sound-dampening homes because of their open, tortuous pore structure that dissipates acoustic energy through thick losses.
They are significantly utilized in auto and aerospace cabins to reduce environmental pollution without including substantial mass.
Additionally, most silica-based aerogel blankets are non-combustible, accomplishing Class A fire ratings, and do not release harmful fumes when revealed to flame– critical for developing safety and security and public facilities.
Their smoke thickness is extremely reduced, enhancing presence during emergency situation evacuations.
4. Applications in Market and Emerging Technologies
4.1 Energy Performance in Building and Industrial Systems
Aerogel blankets are changing energy effectiveness in architecture and commercial engineering by enabling thinner, higher-performance insulation layers.
In buildings, they are utilized in retrofitting historic structures where wall density can not be raised, or in high-performance façades and windows to reduce thermal linking.
In oil and gas, they shield pipelines carrying hot fluids or cryogenic LNG, minimizing energy loss and avoiding condensation or ice formation.
Their lightweight nature also decreases architectural tons, particularly beneficial in offshore platforms and mobile systems.
4.2 Aerospace, Automotive, and Consumer Applications
In aerospace, aerogel coverings shield spacecraft from severe temperature level changes throughout re-entry and shield sensitive instruments from thermal biking in space.
NASA has actually used them in Mars wanderers and astronaut matches for passive thermal policy.
Automotive suppliers incorporate aerogel insulation into electrical vehicle battery packs to avoid thermal runaway and improve security and performance.
Customer items, consisting of outside clothing, footwear, and camping equipment, now include aerogel cellular linings for premium warmth without mass.
As production expenses decline and sustainability boosts, aerogel blankets are poised to become mainstream options in international initiatives to lower energy consumption and carbon discharges.
To conclude, aerogel blankets represent a convergence of nanotechnology and sensible design, supplying unparalleled thermal performance in a versatile, sturdy style.
Their capability to save power, room, and weight while preserving security and environmental compatibility settings them as vital enablers of sustainable technology across diverse industries.
